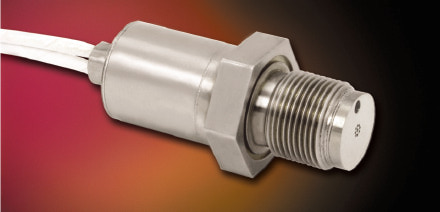

XTEL-4-SD-625
High Temperature Static-Dynamic Pressure Transducer
The XTEL-4-SD-625 (Inconel) Series are high temperature extremely rugged pressure transducers which are ideal for the measurement of flow instabilities and steady pressures in gas turbine combustors and compressors. The XTEL-4-SD-625 (Inconel) uses an innovative low-pass mechanical filter to enable the measurement of low-level dynamic pressures in high pressure environments with superior signal to noise ratios.
Features
- Superior Signal to Noise Ratio of Dynamic Sensor
- Miniature, Robust Construction
- Ultra High Temperature
- Patented Leadless Technology VIS®
- Separated Static-Dynamic Output
- Inconel 625 Screw Housing
- Dual SOI Sensor on a Single Structure
- Excellent Long Term Stability
- High Accuracy
- –65°F to +750°F (-55°C to +400°C) Front End*
Specifications
-
Application
- Flight Test
- General Test & Measurement
-
Temperature Range
- -65°F to +275°F (-55°C to 135°C)
- -65°F to +525°F (-55°C to 273°C)
- Greater than +525°F (273°C)
-
Pressure Range
- Low Pressure (0-500 psi)
-
Excitation
- 10VDC
-
Transducer Style
- Threaded
-
Operational Mode
- Differential
-
Output
- Unamplified Millivolt Output
-
Media
- All nonconductive, noncorrosive fluids
-
Special Products
- Dual Output, Static and Dynamic
