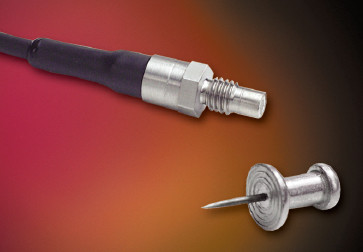

XTL-193-190(M)
Miniature Pressure Transducer
The XTL-193-190 pressure transducer series incorporates the latest pressure sensing technology – Kulite's dielectrically isolated, silicon on silicon, patented leadless sensing element, which enables this device to be used in harsh environments. This device delivers a FSO of 100mV when excited with a 10VDC supply. The ultra miniature construction, provides a compact, robust package. This combined with the high temperature capability of +400°F, makes the XTL-193-190 ideally suitable for applications where space is limited.
Features
- Robust Construction
- Patented Leadless Technology VIS®
- Compatible With Most Automotive Fluids
- Ultra Miniature Construction
Specifications
-
Application
- Automotive Test/Motorsport
- Flight Test
- General Test & Measurement
-
Temperature Range
- -65°F to +275°F (-55°C to 135°C)
- -65°F to +525°F (-55°C to 273°C)
-
Pressure Range
- High Pressure (above 500 psi)
- Low Pressure (0-500 psi)
-
Excitation
- 10VDC
-
Transducer Style
- Threaded
-
Operational Mode
- Absolute
- Sealed Gage
-
Output
- Unamplified Millivolt Output
-
Media
- All nonconductive, noncorrosive fluids
