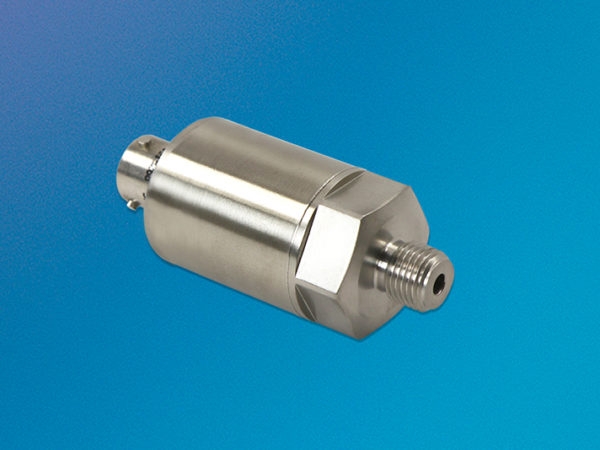

IPTE-483-1000
Voltage Output Digitally Corrected Pressure Transmitter
The IPTE-483-1000 offers a high accuracy voltage output with a total error band of 0.25% FSO across the ulta-wide temperature range of -40°C to +150°C. Designed to measure liquid or gas pressure (with its all-welded, hermetic stainless steel construction), the transducer is ideal for road test, flight test and industrial sensing applications.
Features
- Robust Construction
- High Accuracy
- Digitally Corrected
- Silicon on Silicon Integrated Sensor VIS®
Specifications
-
Application
- Automotive Test/Motorsport
- General Test & Measurement
- Industrial/Process
-
Pressure Range
- Low Pressure (0-500 psi)
-
Excitation
- 12 +/-4VDC
-
Transducer Style
- Threaded
-
Operational Mode
- Absolute
-
Output
- Amplified Voltage Output
-
Media
- All nonconductive, noncorrosive fluids
- Fluids compatible with stainless steel
-
Special Products
- Digitally Corrected
