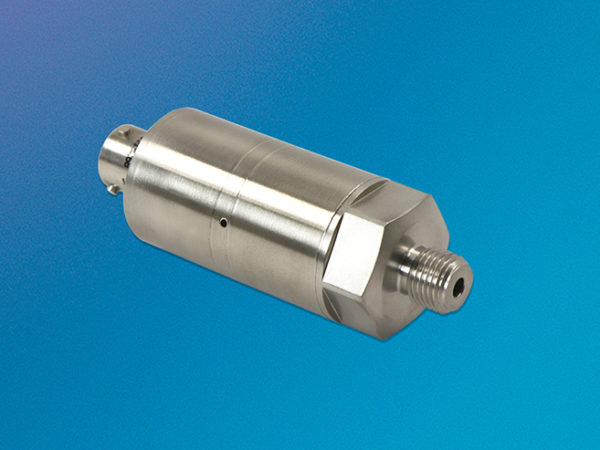

IPTE-484-1000

Voltage Output Digitally Corrected Pressure Transmitter

The IPTE-484-1000 offers a high accuracy voltage output with a total error band of 0.25% FSO across the ulta-wide temperature range of -40°C to +150°C. Designed to measure liquid or gas pressure (with its all-welded, hermetic stainless steel construction), the transducer is ideal for road test, flight test and industrial sensing applications.

Features

  • Robust Construction
  • High Accuracy
  • Digitally Corrected
  • Silicon on Silicon Integrated Sensor VIS®

Specifications

  • Application
    • Automotive Test/Motorsport
    • General Test & Measurement
    • Industrial/Process
  • Pressure Range
    • Low Pressure (0-500 psi)
  • Excitation
    • 12 +/-4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Gage
  • Output
    • Amplified Voltage Output
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
  • Special Products
    • Digitally Corrected
