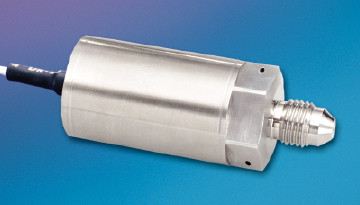

IPTE-1100

General Purpose, 5 Vdc Output Pressure Transducers

The ingenious application of modern solid state technology to transducer sensing makes the IPT-1100 Series the most advanced general purpose pressure transducer available. Designed to measure liquid or gas pressure, the transducer is of all-welded stainless steel construction, with integral pressure port and diaphragm. The IPT-1100 provides an extremely rugged, accurate and inexpensive means for pressure-to-voltage conversion. The IPT-1100 Series are ideally suited for a large number of applications in Industry, Process Control, Marine, Automation and Hydraulics. Similar in design to the unamplified IPT-1100 Series, the IPTE-1100 is a 5 volt unit containing a hybrid microelectronic amplifier and regulator within the all welded case.

Features

  • 5 VDC Output (IPTE-1100)
  • Rugged All Welded Construction
  • High Overload Capabilities
  • Silicon on Silicon Integrated Sensor VIS®
  • Excellent Long Term Stability
  • Intrinsically Safe Applications Available (i.e. IS-IPT-1100 or IS-IPTE-1100)

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
    • Industrial/Process
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)

    See data sheets for specific range.

  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 28 +/- 4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
    • Gage
    • Sealed Gage
  • Output
    • Amplified Voltage Output
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
