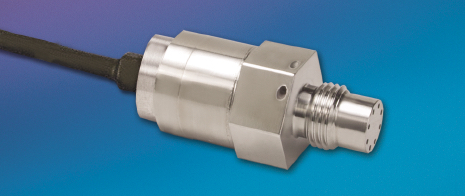

ETQ-13-375(M)

Miniature 4-20Ma Output Pressure Transducer

The ETQ-13-375 Series of miniature pressure transducers are flush diaphragm units utilizing a Kulite Piezoresistive Sensor as the sensing element. Mounted within the body of the transducer is a hybrid regulator-amplifier which provides a stable, low noise 4-20mA output, with a 12 - 32 VDC unregulated input. The flush diaphragm is protected against mechanical damage by a screen which is standard.

Features

  • 4-20mA Output
  • 2 Wire Operation
  • Hybrid Microelectronic Signal Conditioner
  • Flush Diaphragm Coupled With Protective Screen
  • All Welded Construction
  • Silicon on Silicon Integrated Sensor VIS®
  • Qualified Configuration For Industrial Applications
  • Economically Designed For OEM Applications
  • 3/8-24 UNJF or M10 X 1 Thread
  • Intrinsically Safe Applications Available (IS-ETQ-13-375)

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
    • Industrial/Process
  • Temperature Range (see data sheets for specific range)
    • -65°F to +275°F (-55°C to 135°C)
  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 12 +/-4VDC
    • 28 +/- 4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Sealed Gage
  • Output
    • Current Loop Output
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
