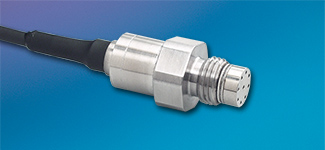

ETL-634(X)-375(M)

Miniature 5Vdc Output Pressure Transducer

The ETL-634X-375M Series transducers are miniature, threaded instruments. screen which has been shown to have minimal influence on the frequency response of the sensor. The ETL Series uses Kulite's Patented Leadless Technology. Incorporation of a Kulite proprietary electronics module within the main body of this product allows for operation from an unregulated power supply ranging from 12 ± 4VDC or 28 ± VDC.

Features

  • Smallest High Performance Amplified Transducer Worldwide
  • High Temperature Electronics 365°F (185°C)
  • Rugged Design Provides Compatibility With Most Corrosive and Conductive Media
  • Patented Leadless Technology VIS®
  • High Over Pressure Capability
  • Designed and Engineered For Severe Environmental Conditions

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
    • High Performance
  • Temperature Range (see data sheets for specific range)
    • -65°F to +275°F (-55°C to 135°C)
    • -65°F to +525°F (-55°C to 273°C)
  • Pressure Range
    • Low Pressure (0-500 psi)
  • Excitation
    • 12 +/-4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
    • Sealed Gage
  • Media
    • All nonconductive, noncorrosive fluids
