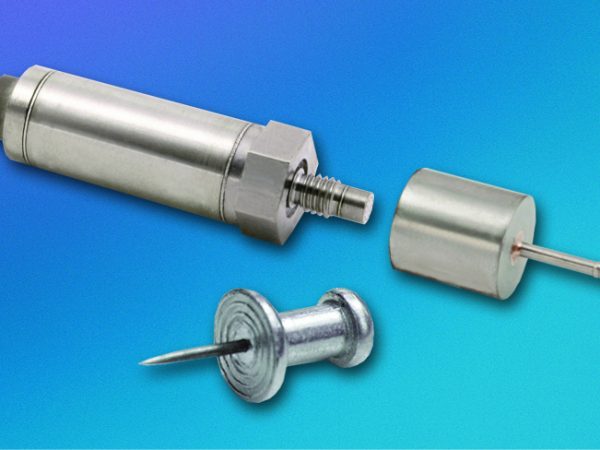

ETL-79-HA-DC-190(M)

Miniature Digitally Corrected Pressure Transducer

KULITE SEMICONDUCTOR PRODUCTS, INC. One Willow Tree Road Leonia, New Jersey 07605 Tel: 201 461-0900 Fax: 201 461-0990 http://www.kulite.com The ETL-79 Series is one of the smallest amplified transducers currently available. It incorporates the latest pressure sensing technology – Kulite's dielectrically isolated, silicon on silicon, patented leadless sensing element, which enables this device to be used in harsh environments. The ETL-79 digitally corrected transducer offers high accuracy with a total error band of ±0.10% FSO Typical, inclusive of all errors over a wide temperature range of 50°F to +250°F.

Features

  • Robust Construction
  • Ultra Miniature Amplified Version
  • Digitally Corrected
  • High Accuracy
  • Patented Leadless Technology VIS®

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
    • High Performance
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)

    See data sheets for specific range.

  • Pressure Range
    • Low Pressure (0-500 psi)
  • Excitation
    • 8 to 32VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
    • Sealed Gage
  • Output
    • Amplified Voltage Output
  • Media
    • All nonconductive, noncorrosive fluids
  • Special Products
    • Digitally Corrected
