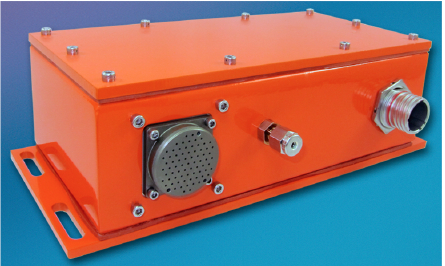

KMPS-3-64

Pressure Scanner

The KMPS-3-64 is a 64 position pressure scanner with high accuracy digital output over either an RS-485 or Ethernet bus. There is an internal heater which keeps the internal temperature above freezing to avoid internal icing. An optional motor allows for digital control over the purge mechanism. The KMPS also features auto-zero capabilities. The KMPS-3-64 has a water resistant case ideal for outdoor testing. The KMPS-3-64 is ideally suited for the flight and ground test market. The Ethernet version features IEEE-1588 timing for precise correlation between multiple devices on the network. The pressure sensors are vibration and moisture resistant leading to extreme reliability. Modules with 16 sensors each are individually replaceable by the user. This allows for different pressure ranges and modes (differential and absolute) in the same scanner. For more information see the KMPS-3 manual (KM 8001).

Features

  • High Accuracy Digital Compensation
  • Silicon on Silicon Integrated Sensor VIS®
  • Wide Temperature Range -65°F to +255°F (-55°C to +125°C)
  • Water Resistant Design
  • Auto Zero
  • Integral Purge
  • IEEE-1588 Timing
  • No External Heating or Cooling Needed

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
  • Temperature Range (see data sheets for specific range)
    • -65°F to +275°F (-55°C to 135°C)
  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 28 +/- 4VDC
    • 8 to 32VDC
  • Transducer Style
    • Other
  • Operational Mode
    • Absolute
    • Differential
  • Special Products
    • Pressure Scanner
