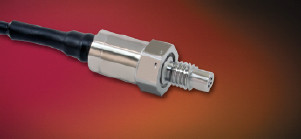

MAKS-6T(X)

Ultraminiature 5V Output High Temperature Pressure Transducer With Integrated Temperature Sensor

The MAKS-6T(X) is one of the newest generation of Kulite's smallest miniature amplified transducers currently available. The sensing sub-assembly is protected from mechanical damage by a protective screen, which has been shown to have minimal influence on the frequency response of the sensor. Incorporation of Kulite proprietary high temperature 392°F (200°C) electronics within the main body allows for operation from an unregulated power supply of 8 to 16VDC.

Features

  • Smallest High Performance Amplified Transducer Worldwide
  • High Temperature Electronics 392°F (200°C)
  • Rugged Design Provides Compatibility With Most Corrosive and Conductive Media
  • Patented Leadless Technology VIS®
  • High Over Pressure Capability
  • Adaptable For A Wide Variety Of Applications
  • Designed and Engineered For Severe Environmental Conditions

Specifications

  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)
    • -65°F to +525°F (-55°C to 273°C)

    See data sheets for specific range.

  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 12 +/-4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
    • Sealed Gage
  • Output
    • Amplified Voltage Output
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
  • Special Products
    • Pressure/Temperature Sensor
